G726H Piston Liner Kit Cylinder Liner 6G-6264 Engine G7-26H Ring 6G6264 Piston

Name: G726H Piston Liner Kit Cylinder Liner 6G6264 Engine G726H Ring 6G6264 Piston
Brand: Caterpillar
Price: 1 USD

Brand Name : Caterpillar

Model Number : 14G, 14H, 14H NA, 16G, 16H, 16H NA

Certification : 68555435543

Place of Origin : China

MOQ : 1

Price : Price negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10

Delivery Time : 3-5

Packaging Details : box

model OEM : 14G, 14H, 14H NA, 16G, 16H, 16H NA

product name : 6G6264 PISTON Caterpillar parts

cross code : CA6G6264 6G-6264 6G6264

other name : Piston Kit

sort : Cylinder Liner

application : Engine Parts

applicable : Excavator Parts

Weight : XX kg.

Contact Now

6G6264 PISTON Caterpillar parts 14G, 14H, 14H NA, 16G, 16H, 16H NA

Product Description
CA6G6264
6G-6264
6G6264

MOTOR GRADER 14G 14H 14H NA 16G 16H 16H NA Caterpillar

14G Motor Grader 96U07046-UP (MACHINE) POWERED BY 3306 Engine

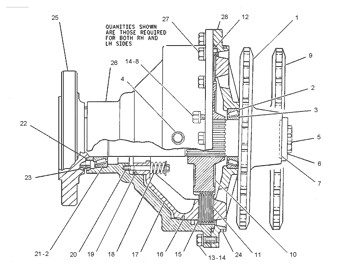

8D-2180: BRAKE GP-SERVICE » SEBP17130332

BRAKE GP-SERVICE

8D-2180 BRAKE GP-SERVICE
S/N 96U7046-UP
PART OF 8D-5470 POWER TRAIN AR

Information

Pos.	Part No	Qty	Parts name
1.	8W-8334	[2]	SPROCKET (FRONT MTG)
2.	1P-4693	[8]	CUP-BEARING
3.	5P-3490	[4]	CONE-BEARING
4.	3J-5390	[4]	PLUG (3/8-18-THD)
5.	5P-6712	[12]	BOLT-LOCKING (3/4-10X3-IN)
6.	2G-1074	[4]	RETAINER
7.	6J-1882 B	[20]	SHIM (0.005-IN THK)
	8D-6541 B	[20]	SHIM (0.007-IN THK)
	6J-1881 B	[16]	SHIM (0.02-IN THK)
8.	8T-6473	[8]	BOLT-LOCKING (5/8-11X2.75-IN)
9.	8W-8334	[2]	SPROCKET (REAR MTG)
10.	2G-8576	[4]	HUB-BRAKE
11.	6Y-7917	[24]	DISC-FRICTION
12.	6M-5218	[4]	SEAL-O-RING
13.	0S-1566	[16]	BOLT (5/8-11X1.5-IN)
14.	4D-3704	[80]	WASHER-HARD (17X30X5-MM THK)
15.	8D-1648	[28]	DISC
16.	8D-1642	[4]	SEAL-D-RING
17.	6G-6264	[4]	PISTON
18.	9J-5498	[24]	SPRING
19.	8D-1643	[4]	SEAL-D-RING
20.	6G-0905	[24]	BOLT (7/16-14X4.37-IN)
	4B-4279	[24]	WASHER (12X23.5X1.6-MM THK)
21.	4B-7270	[4]	CONE-BEARING
22.	9D-1586	[4]	SPACER (3.762X4.562X0.75-IN)
23.	9W-6645	[4]	SEAL GP-DUO-CONE
			(EACH INCLUDES)
	5K-5129	[2]	RING-SEALING
24.	4S-5924	[4]	SEAL-O-RING
25.	147-3311	[4]	SPINDLE-WHEEL
26.	8W-8167	[4]	HOUSING
27.	8T-6472	[56]	BOLT-LOCKING (5/8-11X2.5-IN)
28.	8D-2125	[4]	COVER

OEM

5S2886 Piston	Engine	5S-2886	Ring	9S8973 Ring Grp Piston	Cylinder Liner	9S-8973
6E1131 Piston	Engine	6E-1131	Ring	9S8973 Ring Grp Piston	Cylinder Liner	9S-8973
6E1440 Piston	Engine	6E-1440	Ring	9T4179 Piston Actuator	Cylinder Liner	9T-4179
6E1479 Piston	Engine	6E-1479	Ring	9T4179 Piston Actuator	Cylinder Liner	9T-4179
6E2192 Piston	Engine	6E-2192	Ring	G689H Piston Liner Kit	Cylinder Liner	G6-89H
6E3569 Piston	Engine	6E-3569	Ring	G689H Piston Liner Kit	Cylinder Liner	G6-89H
6G5704 Piston	Engine	6G-5704	Ring	G726H Piston Liner Kit	Cylinder Liner	G7-26H
6G6264 Piston	Engine	6G-6264	Ring	G726H Piston Liner Kit	Cylinder Liner	G7-26H
6J2798 Piston	Engine	6J-2798	Ring	G737H Piston Liner Kit	Cylinder Liner	G7-37H
6J9324 Piston	Engine	6J-9324	Ring	G737H Piston Liner Kit	Cylinder Liner	G7-37H
6T0235 Piston	Engine	6T-0235	Ring	Rsc12E Ring Set Piston	Cylinder Liner	Rs-c12E
6T0239 Piston	Engine	6T-0239	Ring	Rsc13E Ring Set Piston	Cylinder Liner	Rs-c13E
6Y1887 Piston	Engine	6Y-1887	Ring	Rsc15E Ring Set Piston	Cylinder Liner	Rs-c15E
6Y2428 Piston	Engine	6Y-2428	Ring	Rsc18E Ring Set Piston	Cylinder Liner	Rs-c18E
